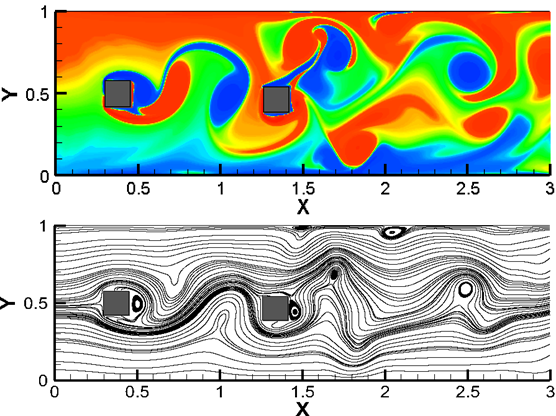

1. Staggered- Square Cyilnders Obstacle of Re=300 (streamlines and Vorticity)

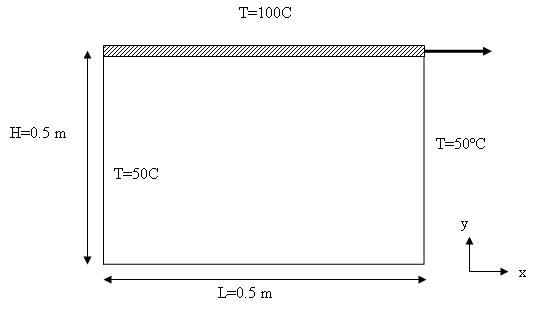

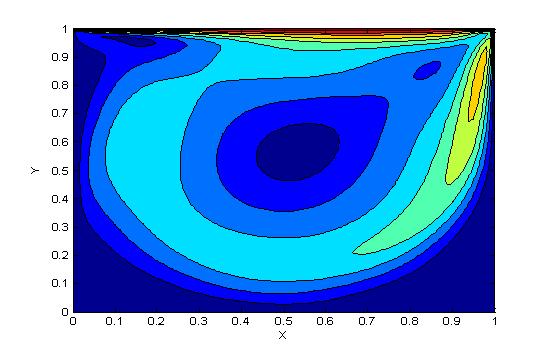

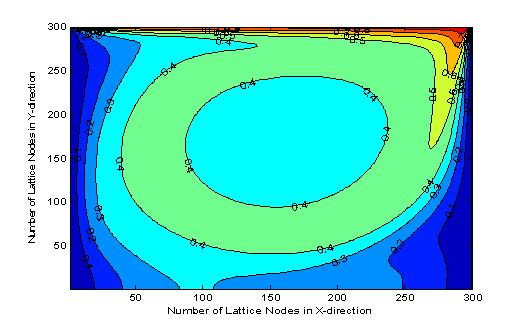

1. Square Heated Lid Driven -Two dinensional and Nine directional velocities are applied here.

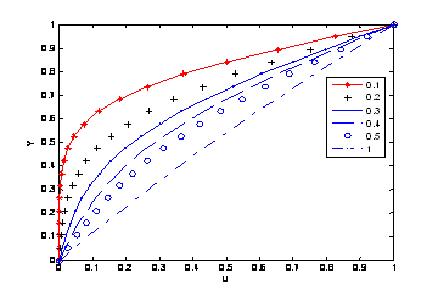

2. Coutte Flow- Upper Plate moves in x-direction
Ref: Lattice Boltzmann applied to fluid flow and heated lid-driven using 2D square lattice dimension (D2Q9) (Thesis)
